Syna
Implant System
Manufactured in Korea

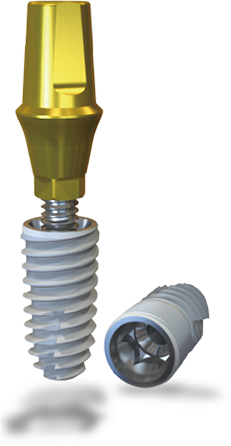

Internal Conical Connection
2.5 Hex
Conical Seal (11̊0)
Manufactured in Korea
Connection
Submerged type implant with an internal hex 110 conical taper connection - compatible with Astra® implant
Optimum screw thread design for SLA surface to achieve consistent roughness
Taper body design with superior initial stability
Highest initial stability in soft bone by using upper-section thread and body design
Powerful self-threading effect using corkscrew thread
Acquires the initial stability needed in immediate loading even in soft bone
Internal Conical Connection
2.5 Hex
Conical Seal (11̊0)
Macro Thread
(Double Thread)
Improved self-tapping function.
Enhanced penetration.
Platform Switching
Soft tissue
formation, which is
esthetic / natural
looking.
Enables a strong and
stable fit between
abutment and implant
Cutting Edge Design
The cutting edge of implant is designed to have optimum torque at the all the bone types. One can change the direction of implant placement with the cutting edge design of threads.
S.L.A. Surface

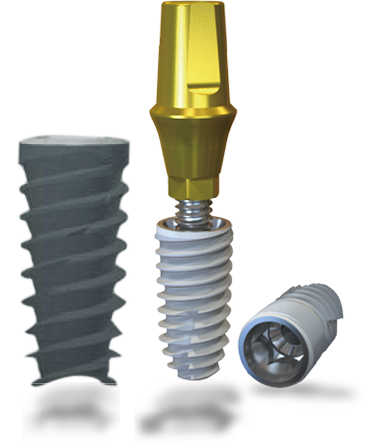

Manufactured in Korea
Connection
Submerged type implant with an internal hex 11 0 conical taper connection - compatible with Astra® implant
Optimum screw thread design for RBM surface to achieve consistent roughness
Taper body design with superior initial stability
Highest initial stability in soft bone by using upper-section thread and body design
Powerful self-threading effect using corkscrew thread and Apical blade for optimal penetration
Controllable depth
No-mount fixture
Bio Active R.B.M. Treatment
Micro-particles of the Hydroxyapatite is impregnated into Ti Gr5 through high pressure blasting techniques
Internal Conical Connection
2.1 / 2.5 Hex
Conical Seal (11°)
Apical Blade
Self tapping blade (Path modification)
Optimal penetration & placement -small diameter preparations

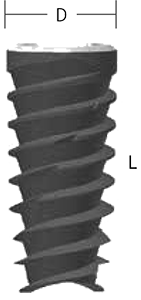

Tapered Bevel Platform
Bacteria resistant bevel reduces the bacterial infiltration
Reduction of bone loss
Long term esthetic stability
Perfect closure of the gingiva
Better esthetic aspect
Optimal self threading function & path control
Excellent initial fixation and prevention of the excessive torque
Sufficient Bone volume between the threads
Easy placement and bone condensing
Easy depth control
Higher primary stability
| Mini | Regular | ||||||
|---|---|---|---|---|---|---|---|
| D/L | Ø3.2 | Ø3.5 | Ø4.0 | Ø4.5 | Ø5.0 | Ø5.5 | Ø6.0 |
| 8.50 | ICH3208MR | ICH3508MR | ICH4008RR | ICH4508RR | ICH5008RR | ICH5508RR | ICH6008RR |
| 10.00 | ICH3210MR | ICH3510MR | ICH4010RR | ICH4510RR | ICH5010RR | ICH5510RR | ICH6010RR |
| 11.50 | ICH3211MR | ICH3511MR | ICH4011RR | ICH4511RR | ICH5011RR | ICH5511RR | ICH6011RR |
| 13.00 | ICH3213MR | ICH3513MR | ICH4013RR | ICH4513RR | ICH5013RR | ICH5513RR | ICH6013RR |
| 15.00 | ICH3215MR | ICH3515MR | ICH4015RR | ICH4515RR | ICH5015RR | ICH5515RR | ICH6015RR |
