Cover Screw
- Long size is used in deep sub-gingival insertion
- Universal Hex Driver 1.2mm
- Recommended Hand Tightening Torque: 5~8 Ncm
| Length | 3.5 | 4.0 |
|---|---|---|
| SSR350 | SSR400 |
Healing Abutment
- Used to achieve excellent gingiva cuff
- Universal Hex Driver 1.2mm
- Recommended Hand Tightening Torque: 5~8 Ncm
| Height | 4.0 | 4.5 | 5.5 | 6.0 |
|---|---|---|---|---|
| 3 | HC40030 | HC45030 | HC50030 | HC60030 |
| 4 | HC40040 | HC45040 | HC50040 | HC60040 |
| 5 | HC40050 | HC45050 | HC50050 | HC60050 |
| 7 | HC40070 | HC45070 | HC50070 | HC60070 |
! Alert

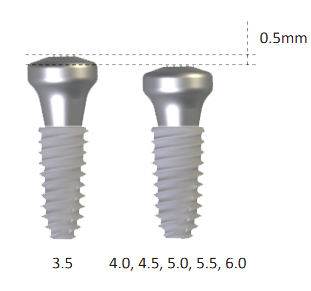

All implant diameters have the same unique platform to enable any abutment to fit any implant diameter – superb flexibility. Please note abutment in 3.5mm diameter implant will be 0.5mm higher than on the rest of the diameters.
